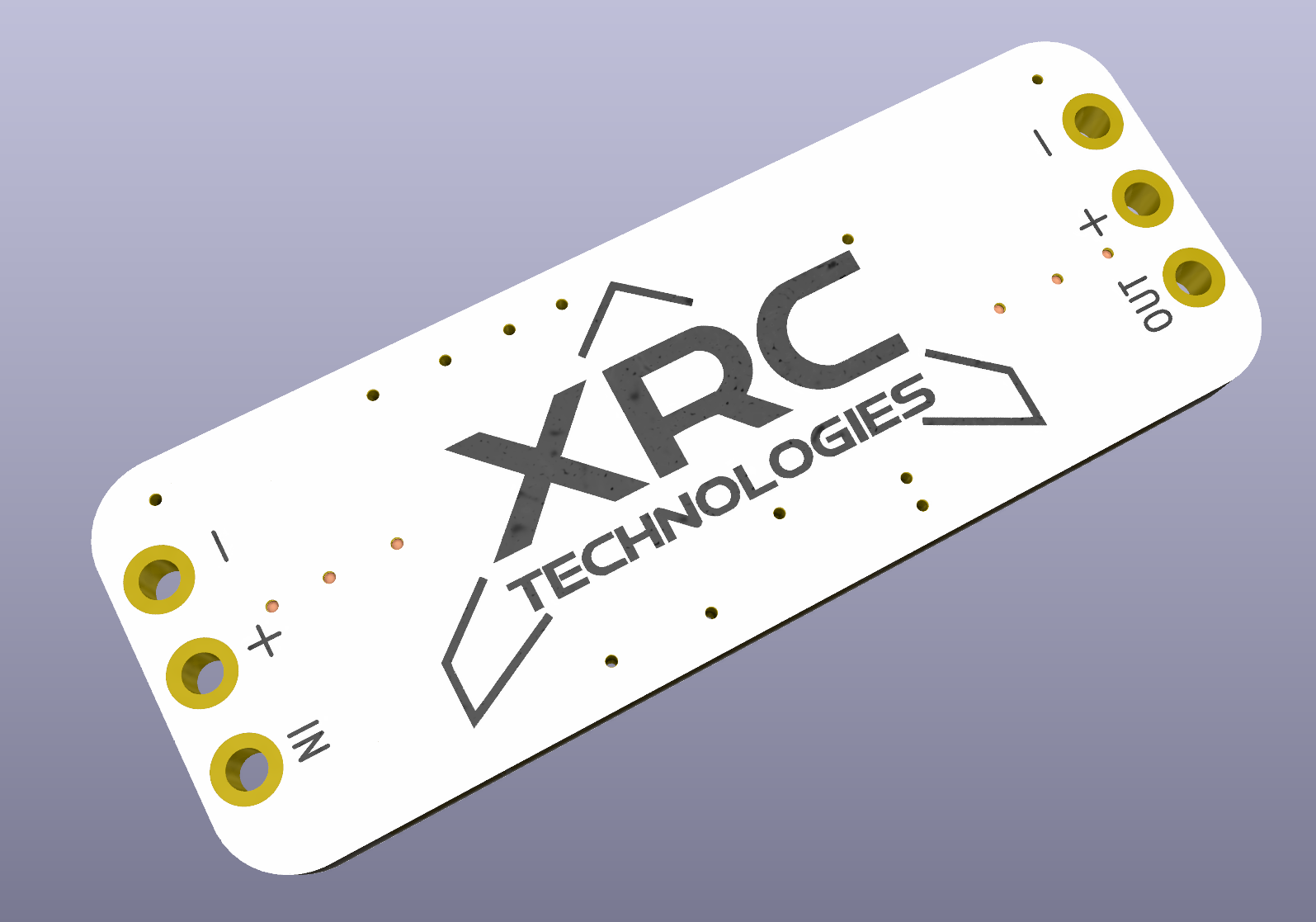

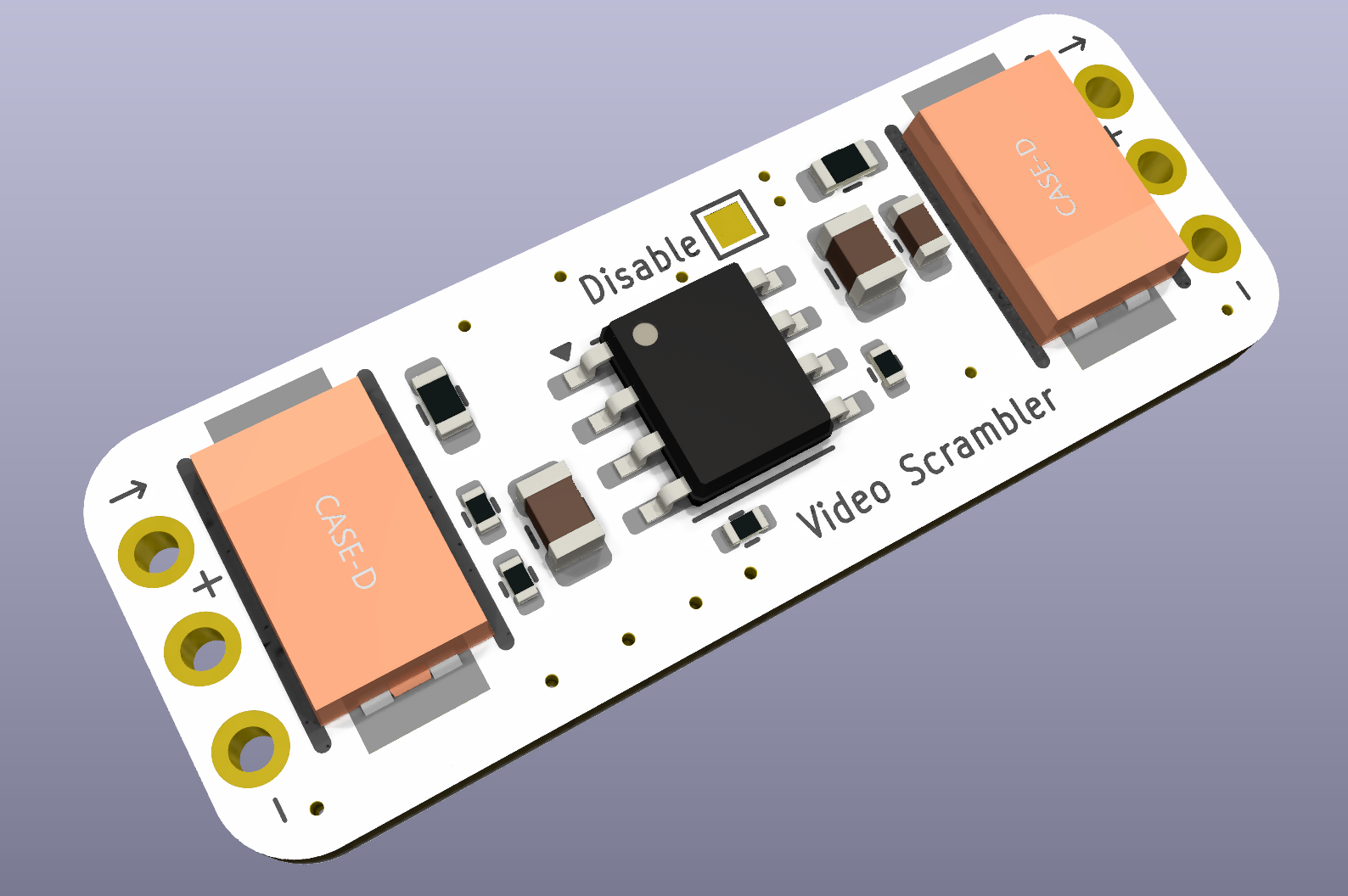

XRC Technologies Video Scrambler

Ultra lightweight and compact video scrambler for NTSC/PAL video signals all while adding ZERO LATENCY to your FPV system at an affordable price.

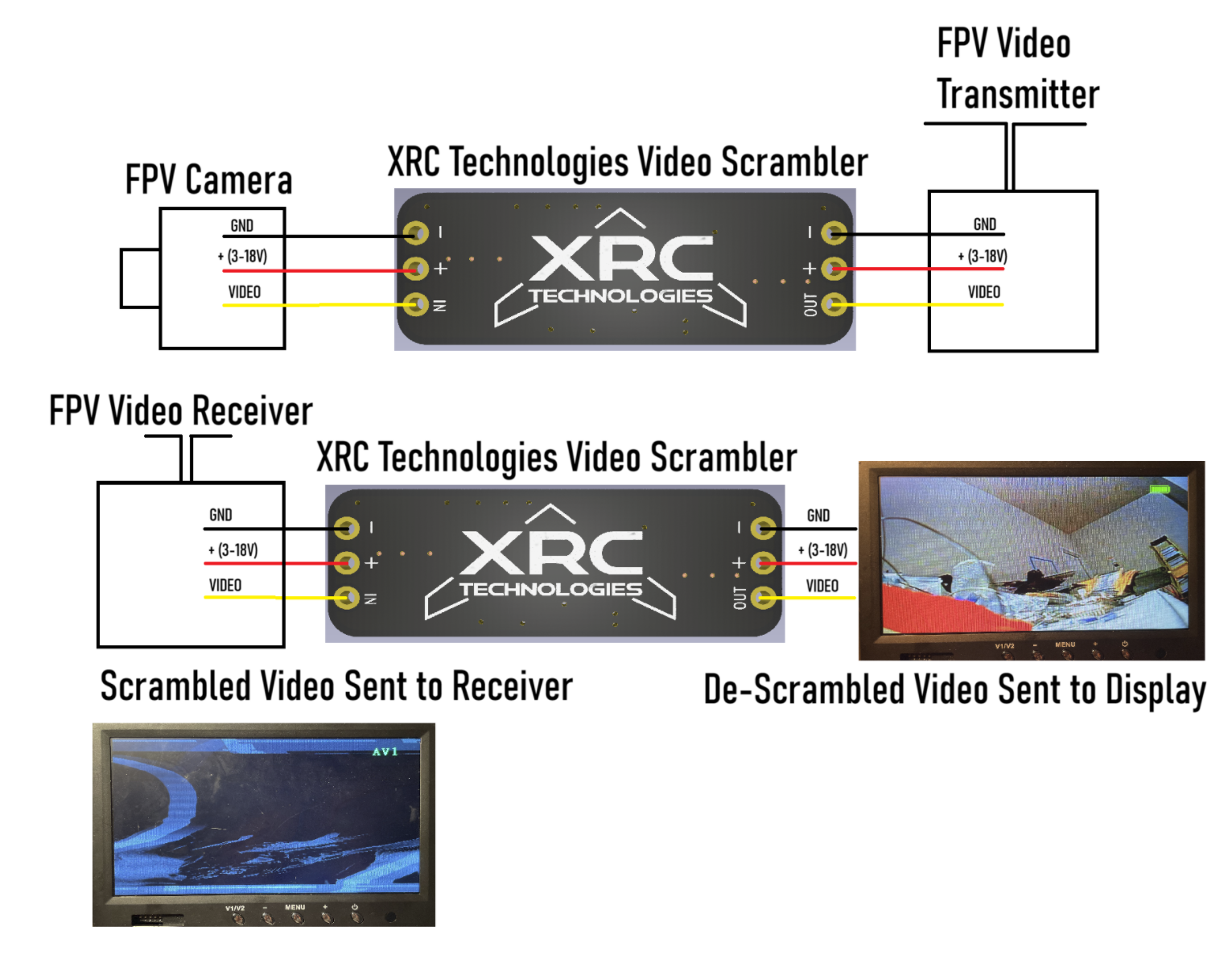

One module connects between camera and VTx to send scrambled signal.

Another module connects between receiver video output and display to de-scramble video signal.

Sold as individual unit. For complete system, two modules will be needed. One for scrambling and another for de-scrambling.

All boards are partially assembled and shipped in the USA.

Specifications:

29.4x10.8mm

Extremely light weight (2.0g)

3-18V input

Zero Latency added

Disable pin (pull LOW to disable)

High quality tantalum capacitors

Easy to setup - simply wire in series with video system

USER MANUAL

DISCLAIMER:
As this module is performing signal conditioning there is not encryption. Thus, any user who has another video scrambler can de-scramble a video signal.
