FORTIS 100A ESC [Pre-Release]

DISCLAIMER: This is an experimental prototype sold at a discounted price that has been fully tested and ready for production. Comes pre-flashed with AM32 firmware. The first official release will have a few cosmetic changes that will not alter the functionality of the ESC.

[USA-Designed for future NDAA Compliance]

This is no ordinary ESC. It's a precision engineered masterpiece designed for ultimate reliability and robustness in every situation. Designed to use only NDAA compliant semiconductors (Texas Instruments, STMicroelectronics, Toshiba), the XRC Fortis ESC is designed to outperform every competitor on the market in terms of power density, reliability, and performance.

With 26 high quality ceramic capacitors for a total of 260uF of input capacitance as well as EMI optimized layout, this ESC can run most 6s applications with no external capacitor.

Dual high-PSRR voltage regulators ensure rock-solid stability so that your ESC won't experience de-syncs from noisy environments.

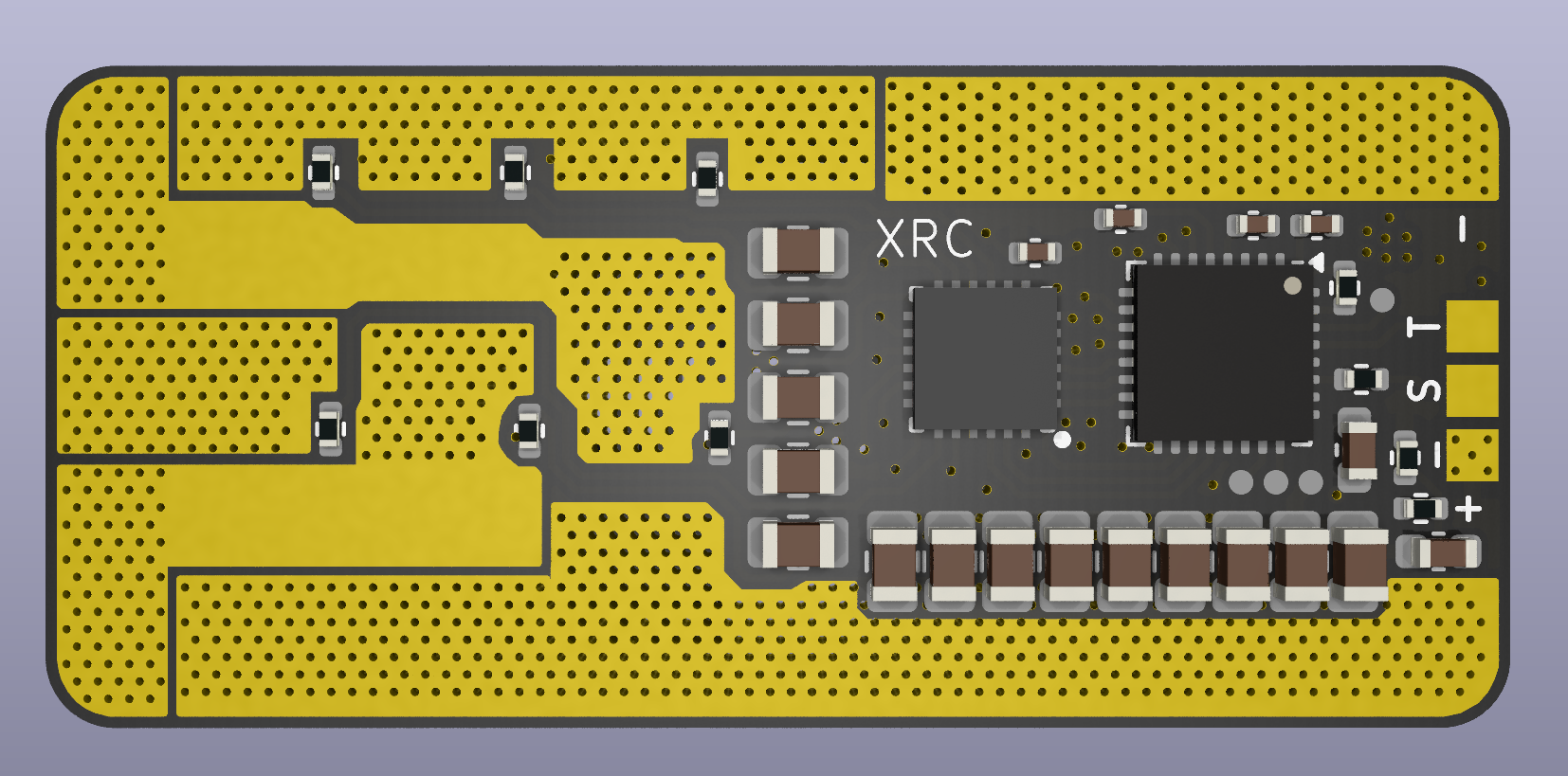

The engineered 8 layer 2OZ copper PCB ensures optimal conduction losses.

Space for extra solder and bus-bars increase current carrying capability and reduce thermal load on PCB.

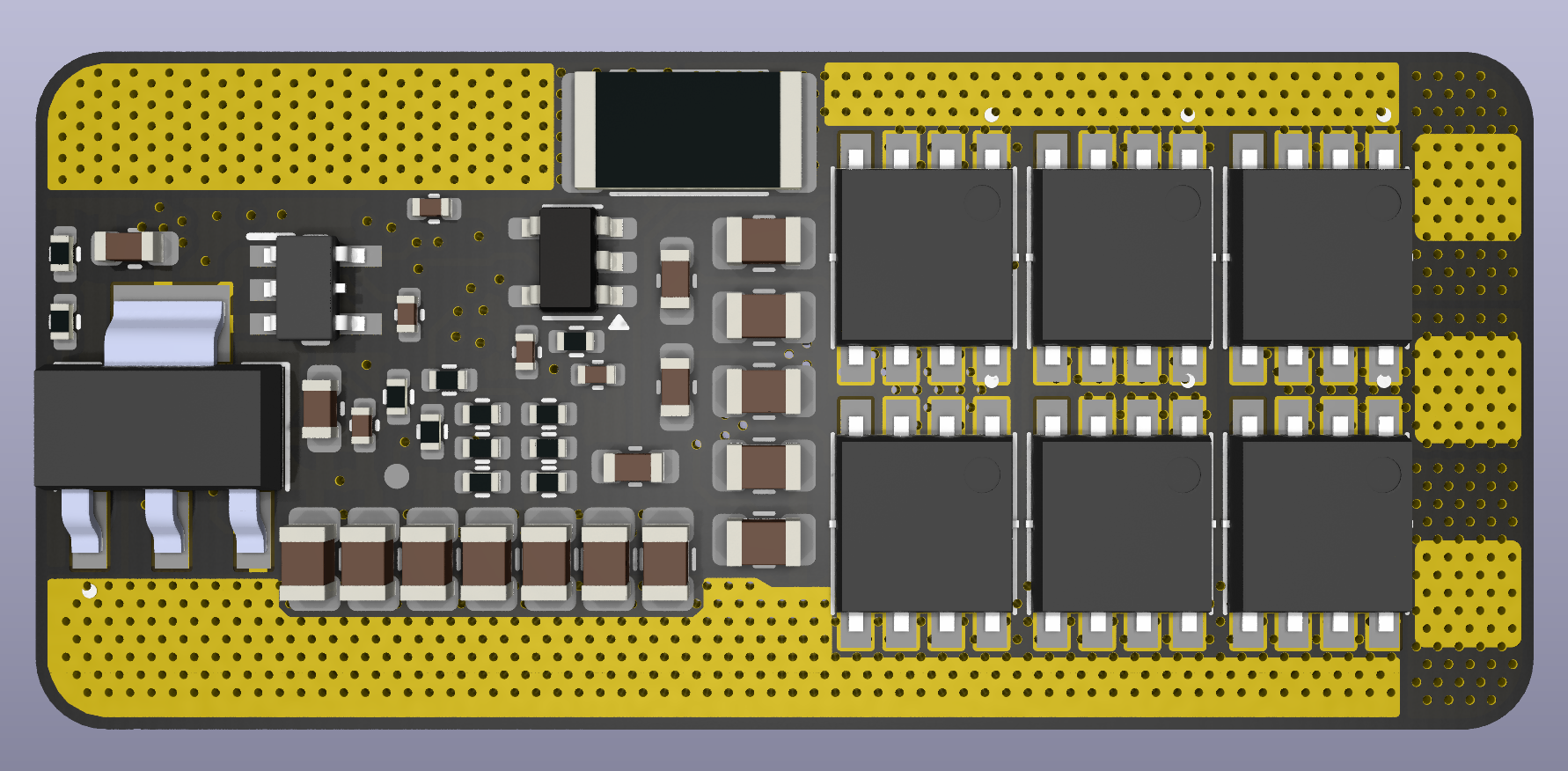

FET placement is heat-sink friendly for extra reliability and enhanced thermal characteristics.

MANUAL

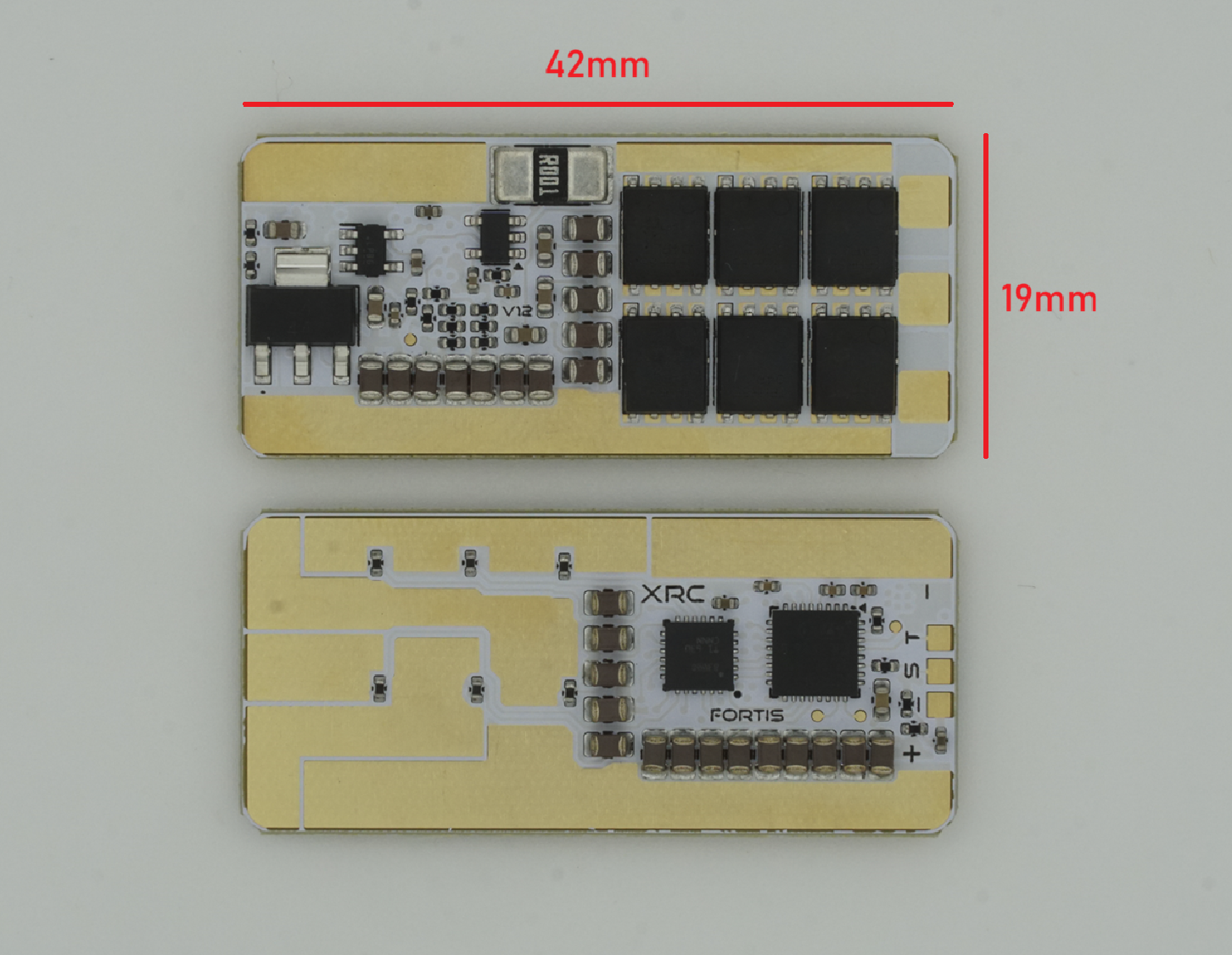

Dimensions: 19x42x4.5 mm

Weight (Bare ESC): 6.7g

Full AM32 Support

8-layer 2OZ PCB

Current + Voltage telemetry

2-8S, 100A continuous [still under testing]. 120A peak [60 sec + airflow]

No BEC, OPTO Only

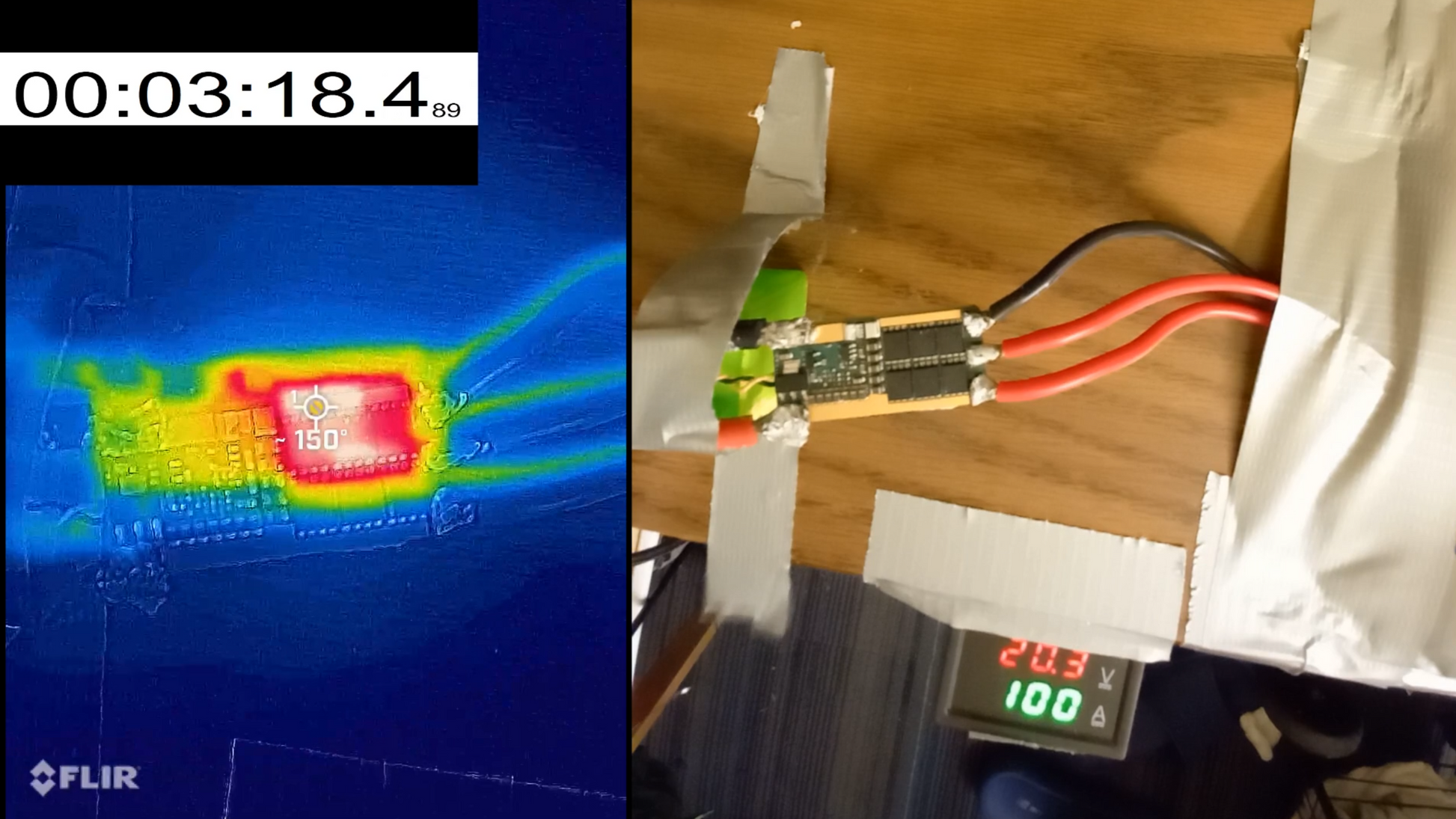

Preliminary test results (6s Max Throttle for 221 seconds):
