GaN-FET Breakout Board Rev. A

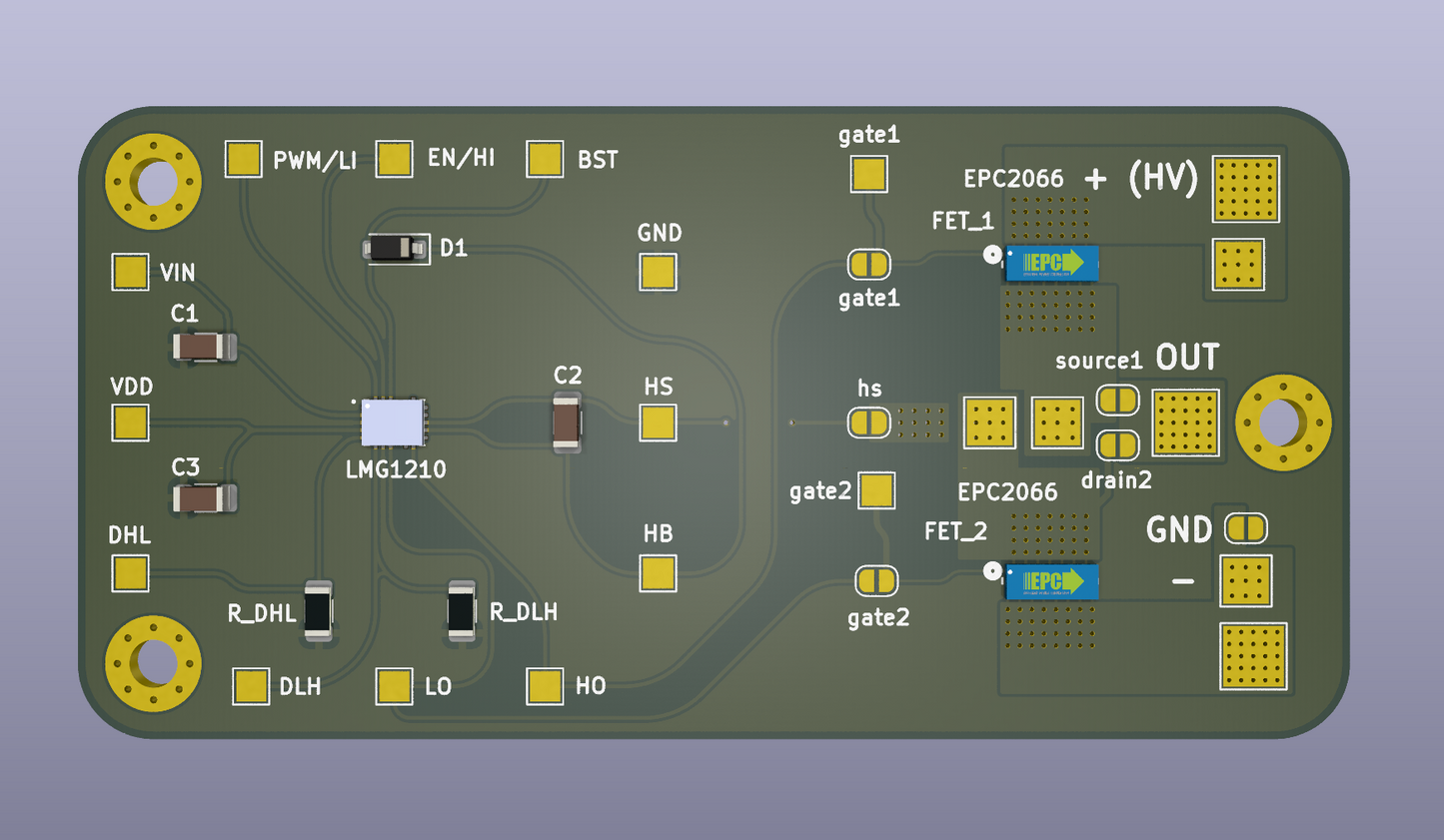

Breakout board for LMG1210 gate driver + EPC2066 GaN-FET.

• Half-bridge configuration
• Solder jumpers for all gate driver and FET connection points
• Large 1206 sized SMD pads for easy hand soldering
• M3 mounting holes
• Configurable deadtime through resistors
• Large FET pad surface area for optimal current flow
