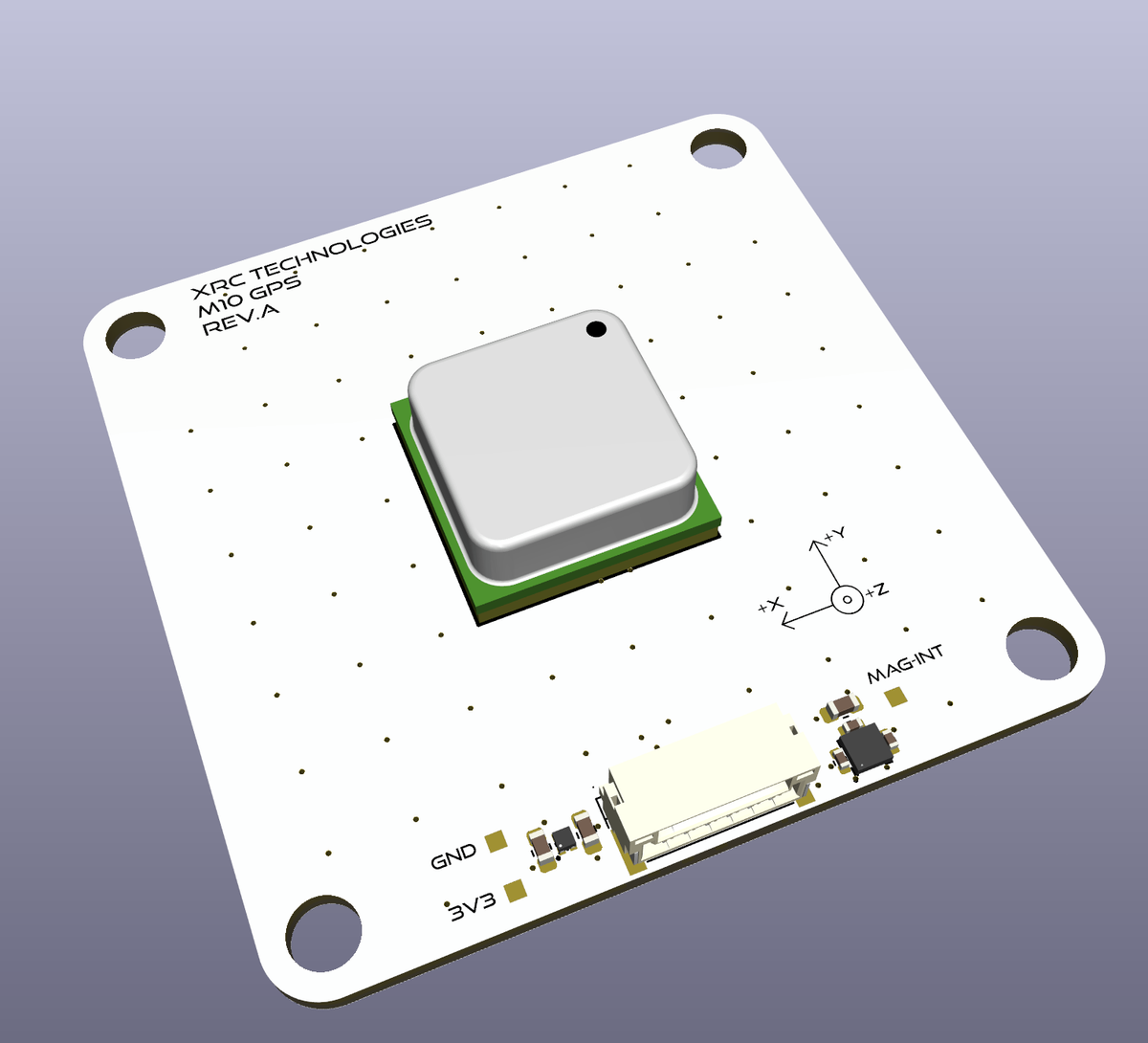

XRC WayPoint M10 GPS - NDAA

The XRC Technologies WayPoint M10 GPS module adds ultra-stable GPS data to your UAV system.

WayPoint is the only GPS module on the market that correctly utilizes an antenna ground plane for maximum antenna performance across the entire L1 GPS band.

This allows for faster satellite locks and more precise geolocation data.

Proudly made in the USA, the XRC WayPoint M10 GPS is NDAA compliant.

Specs:
Brand/Manufacturer: XRC Technologies LLC
GNSS Chipset: u-blox SAM-M10Q-00B
Supported Constellations: GPS L1 C/A, QZSS L1 C/A L1S, GLONASS L1OF
BeiDou B1C, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
Update Frequency: Up to 25 Hz
Horizontal Positioning Accuracy: 1.5 m CEP
Tracking Sensitivity: -165 dBm
Cold Start/Hot Start Sensitivity: -146 dBm / -157 dBm
Start Times:
Cold Start: 23 s
Aided Start: 1 s
Hot Start: 1 s
Onboard Compass: IIS2MDCTR via I²C
Operating Voltage: 3.3V – 5.0V DC Input
Communication Interface: UART (3.3V Logic, 4800 to 921600 bps Supported)
Protocols Supported: NMEA 0183, UBX, RTCM
Dimensions: 50mm x 50mm x 7mm
Net Weight: 15g
Operating Temperature: -40°C to +85°C
